Razorback CMX2406 Contractor AWD All Terrain Mower

$29,490.00
CMX2406


Contractor's
Model

  • Pinterest

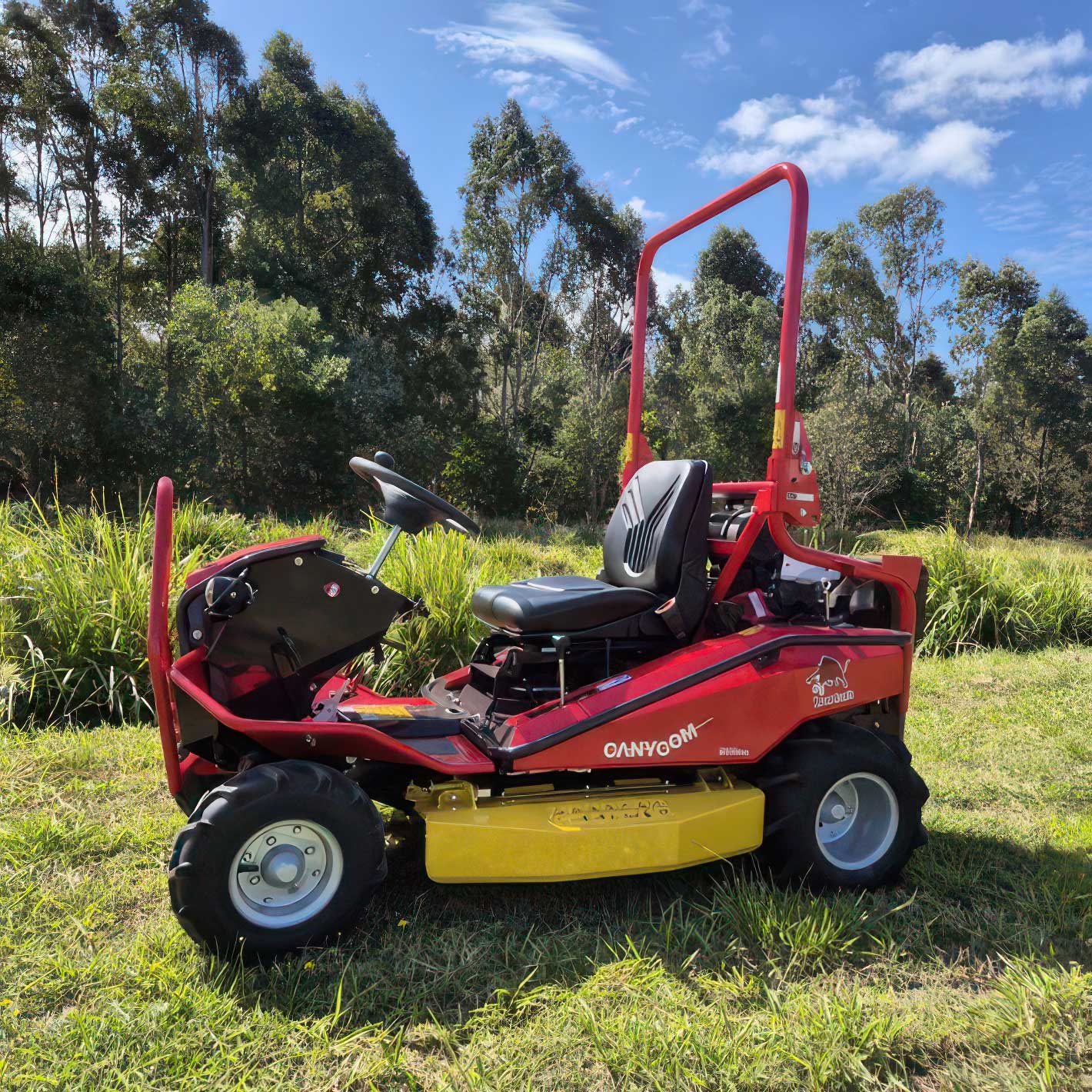

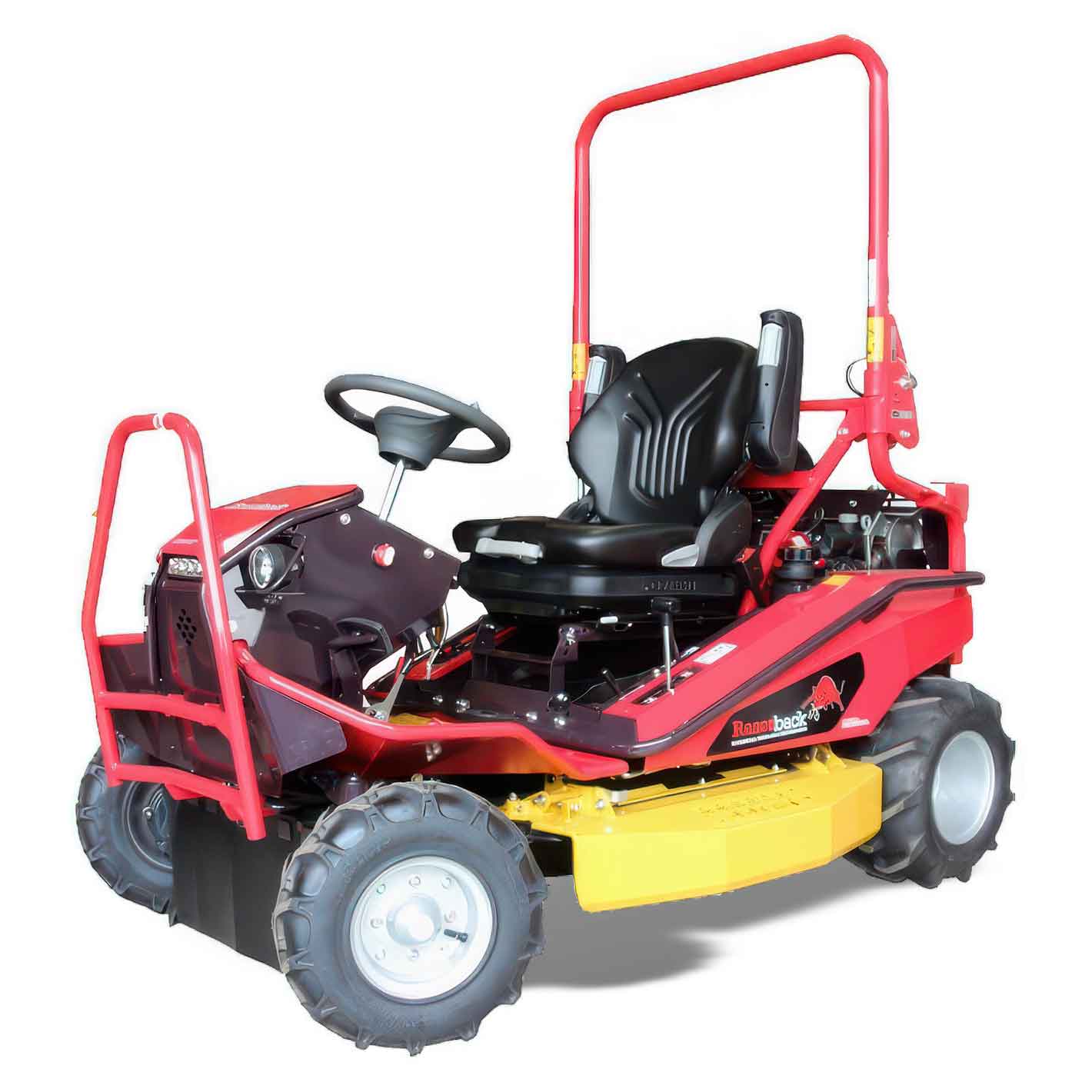

Razorback CMX2406 AWD All Terrain Mower

The Razorback CMX2406 is a premium ride-on all terrain mower designed for ultimate performance, safety, and durability, making it an ideal option for contractors and professionals. It is powered by a reliable Honda GX690 twin cylinder engine, which offers significant power while maintaining reduced noise levels. This machine is built for extended periods of use, with a robust all-steel body, a high grass gathering bumper, and hard-to-flat tires, making it Razorback's toughest professional unit to date. While the mower has been designed and built in Japan it is designed to handle our harsh Australian landscape.

  • 23HP twin cylinder Honda GX690 engine with a double-barrel carburettor and engine oil cooler
  • Over head camshaft
  • Equipped with a certified foldable ROPS
  • A unique front bumper that effectively gathers high and dense grass
  • LED lights and a more comfortable design with a wider footrest
  • Adjustable steering.
  • Selectable 2WD & 4WD from the dashboard on the run
  • A cast iron compact tractor front axle set with planetary hubs
  • High & low ratio gearbox
  • Limited slip diff lock that is selectable from the dashboard

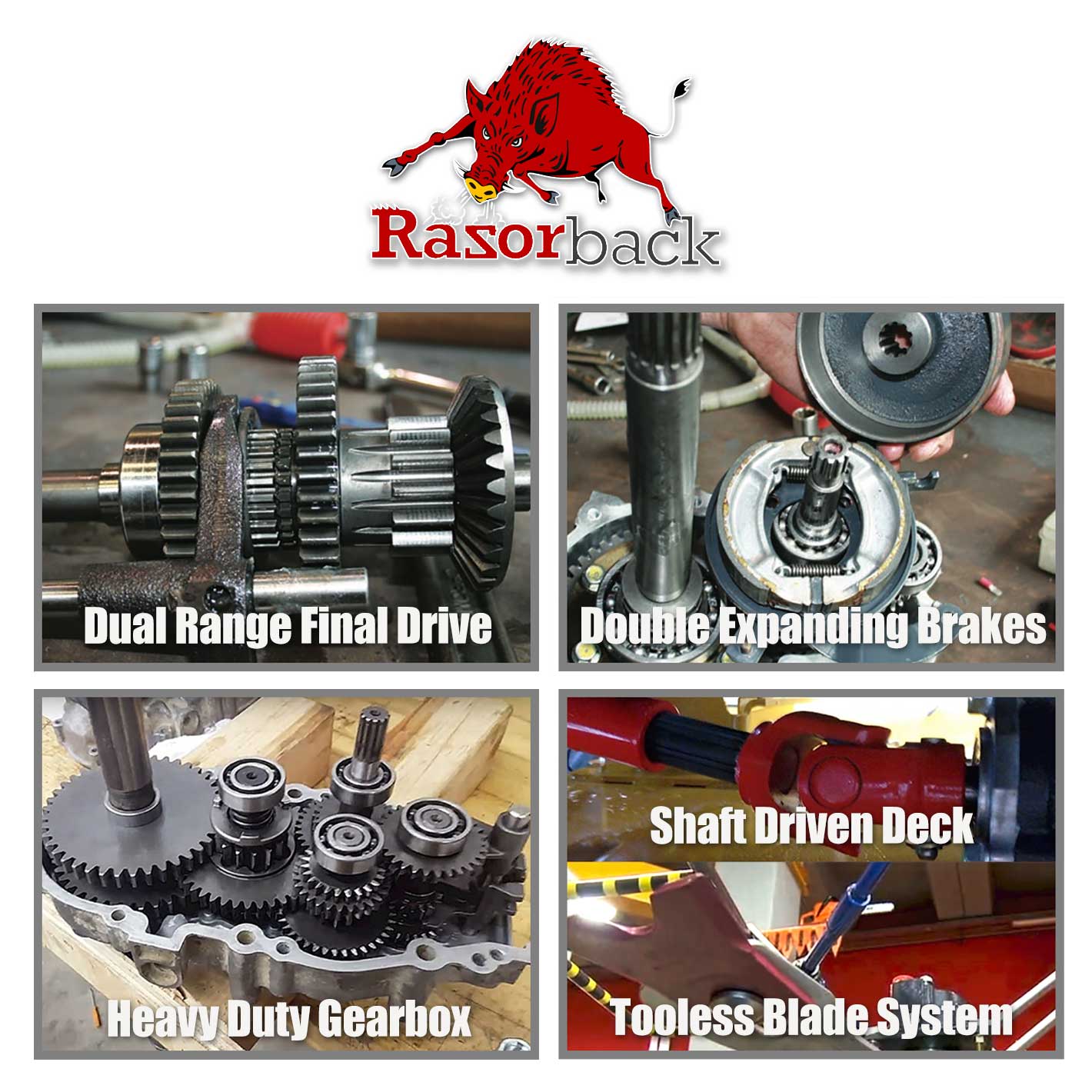

  • Shaft driven cutter deck train with a heavy duty gearbox
  • Hydrostatic transmission complete with charge pump, oil filter & 4.5 litre hydro reservoir
  • Hand & foot control
  • Drum brakes
  • Park brake

The CMX2406 is the Contractor’s ultimate all terrain mower. It provides a very economical means to tackle slashing and mowing work that was not viable before. The return on investment for a professional contractor is absolutely staggering; especially in the hands of a good operator. This mower is extremely capable as it handles all base clumping grasses, saplings up to 36mm in diameter including many of the wetter varieties of plant pests like rushes found in wetter environments.

There is no other shaft driven, mechanical 4WD or AWD mower on the market in this segment. The CMX2406, which has a much more substantial hydrostatic transmission, complete with a charge pump, removable oil filter and 4.5 litre oil tank that reticulates the hydrostatic oil for cooling in extreme conditions.

This is a contractor’s all terrain mower that is built for day long work; it will manage wet conditions with absolute stealth so that you continue working when all your fellow contractors are unable to get onto the ground; the small mower footprint is extremely environmentally friendly, especially on erosion prone hillsides, levee walls and steep banks. Warranty is 3 years / 1000 hours - unbelievable engineering!

Seeing is believing - ask for a demonstration to see just what you will be able to achieve on your property!

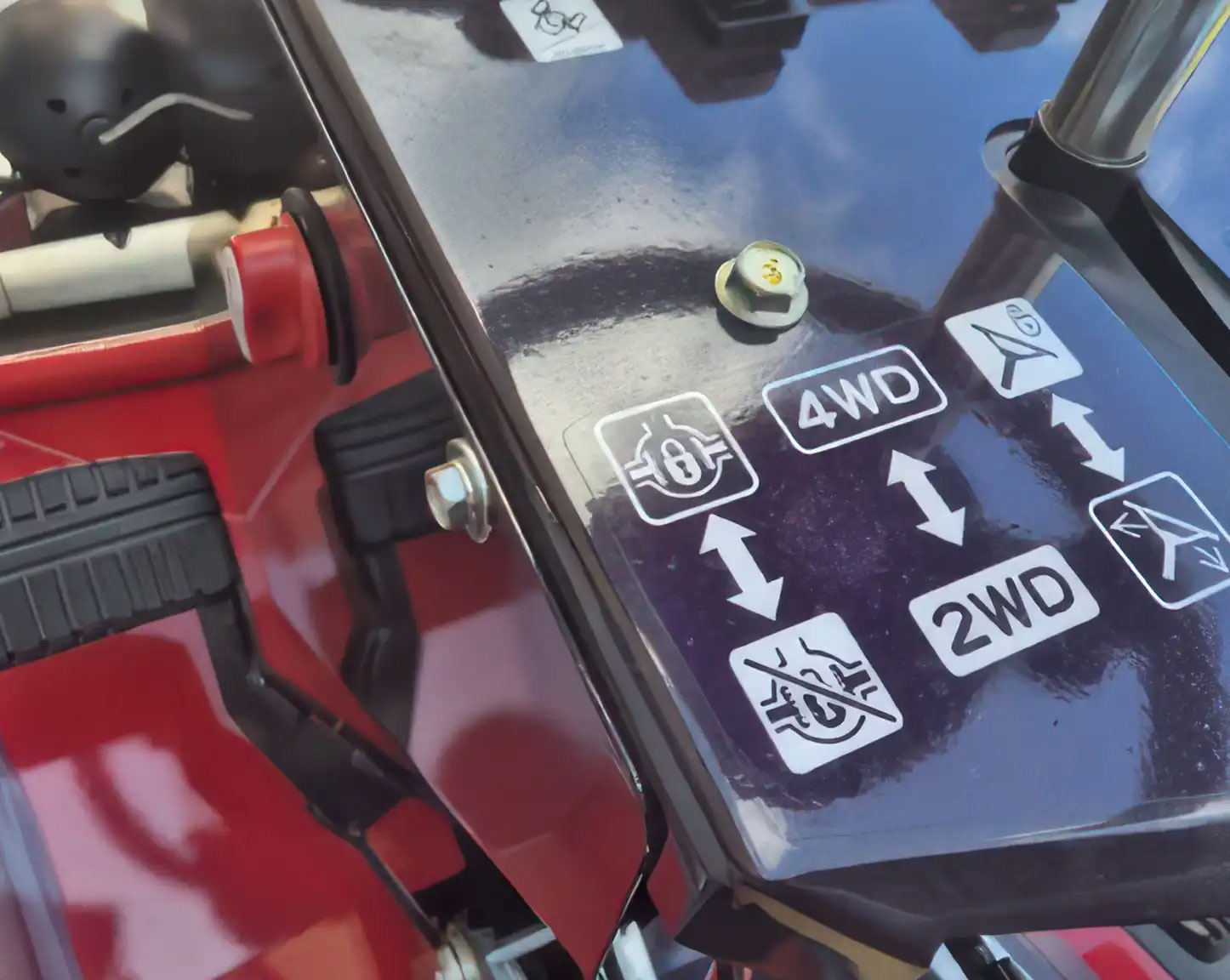

Selectable 4WD & Diff Lock

The Razorback provides high & low as well as selectable 4WD and rear diff lock - unbelievable AWD control and braking on steep slopes!

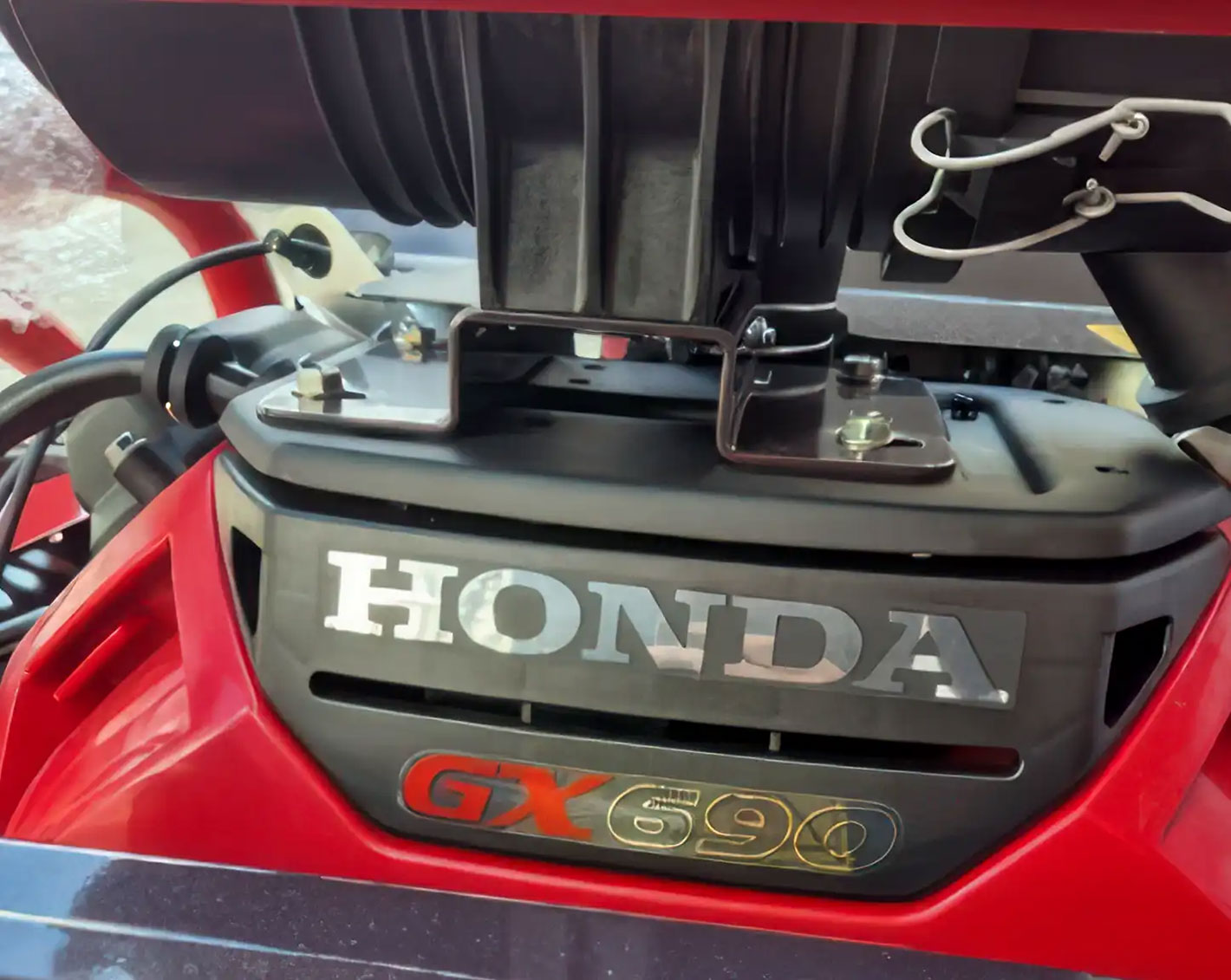

22 HP Honda GX690 v-twin engine

Honda over head camshaft v-twine engine that delivers 16.2kW/3600rpm - Honda reliability and longevity guaranteed.

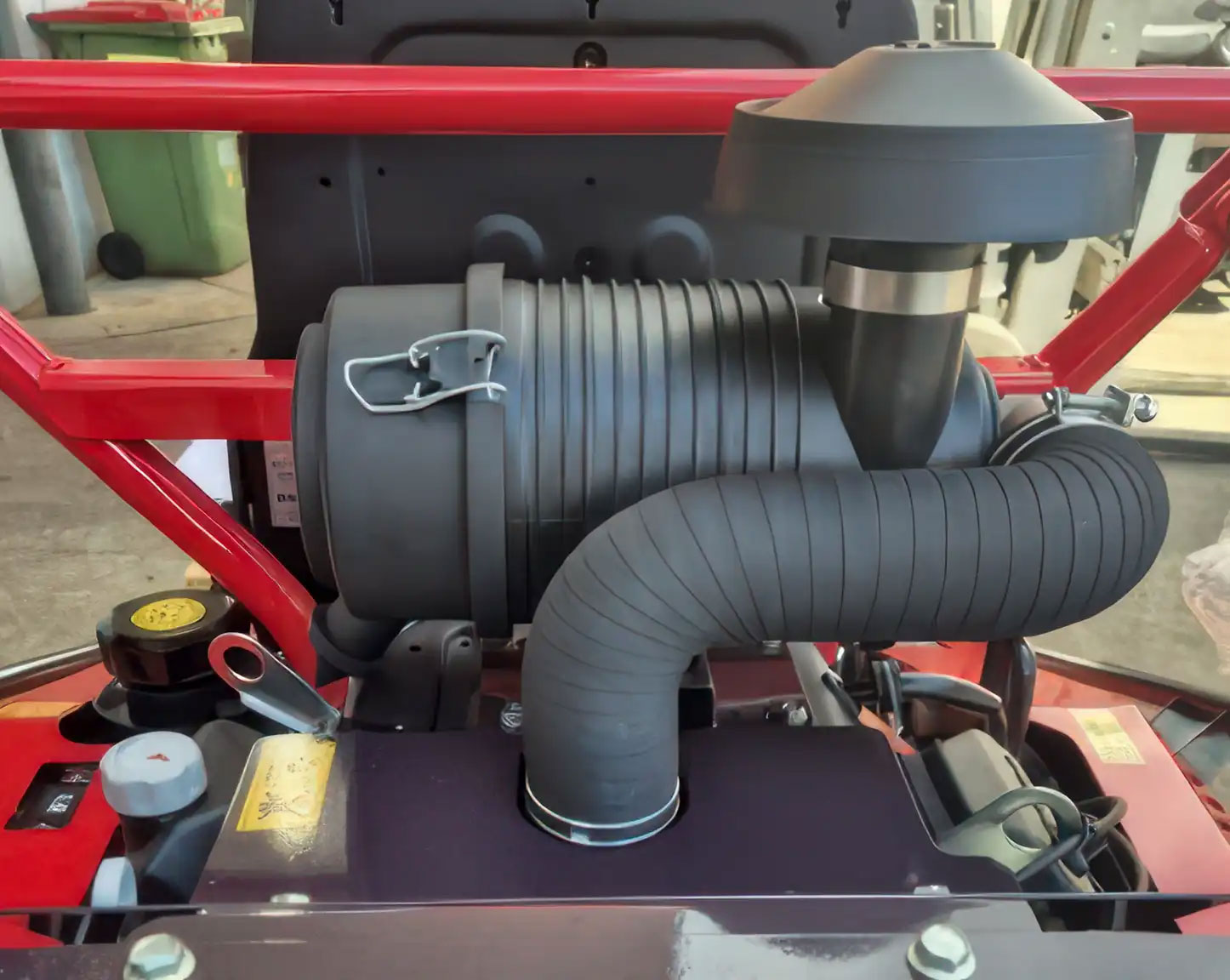

Donaldson style air cleaner

Maintaining engine life with a serious air filter system to ensure clean air reaches the engine - even in dry dusty conditions.

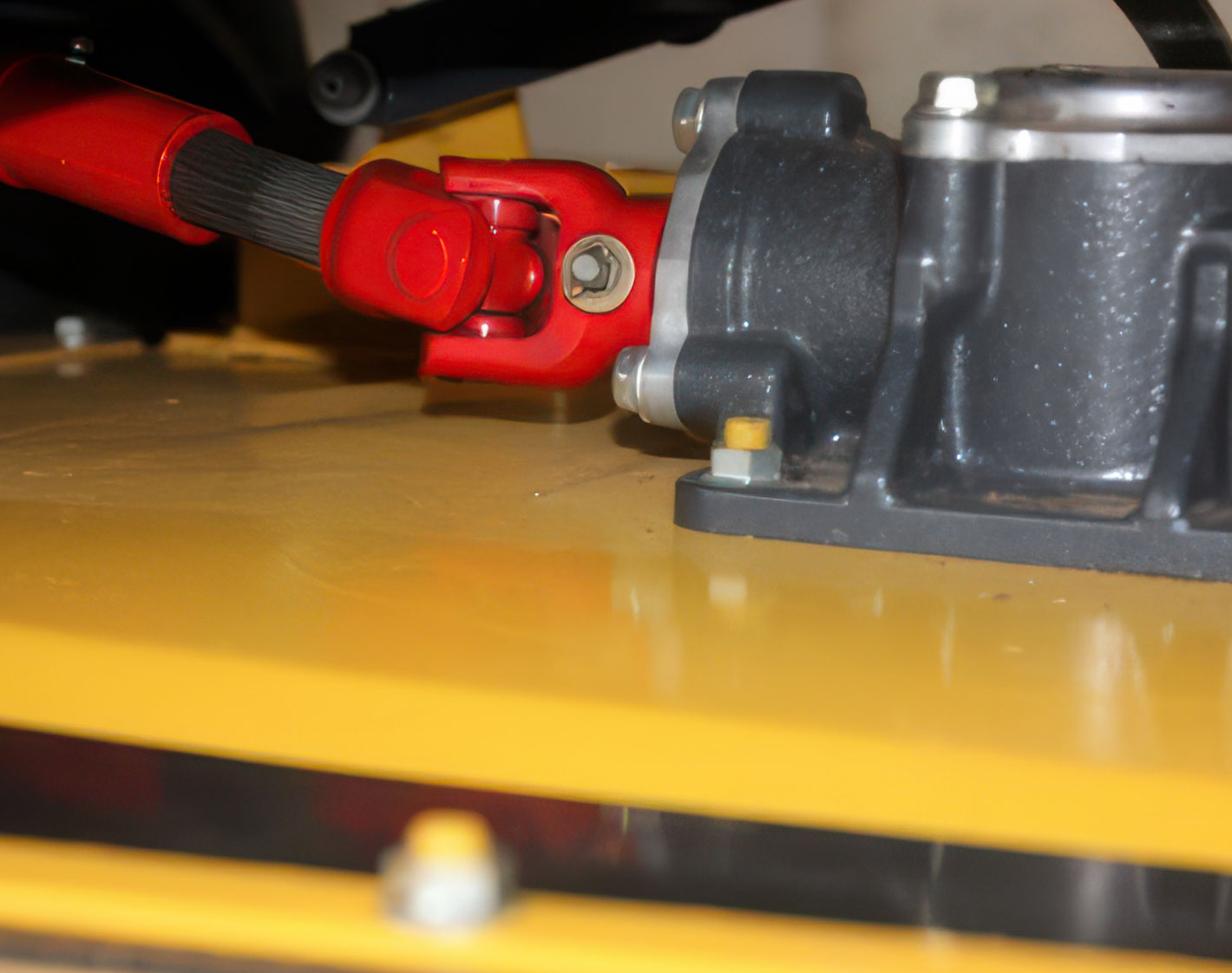

Shaft driven cutter deck

Super tough shaft driven deck with heavy duty gearbox and adjustable side discharge deck.

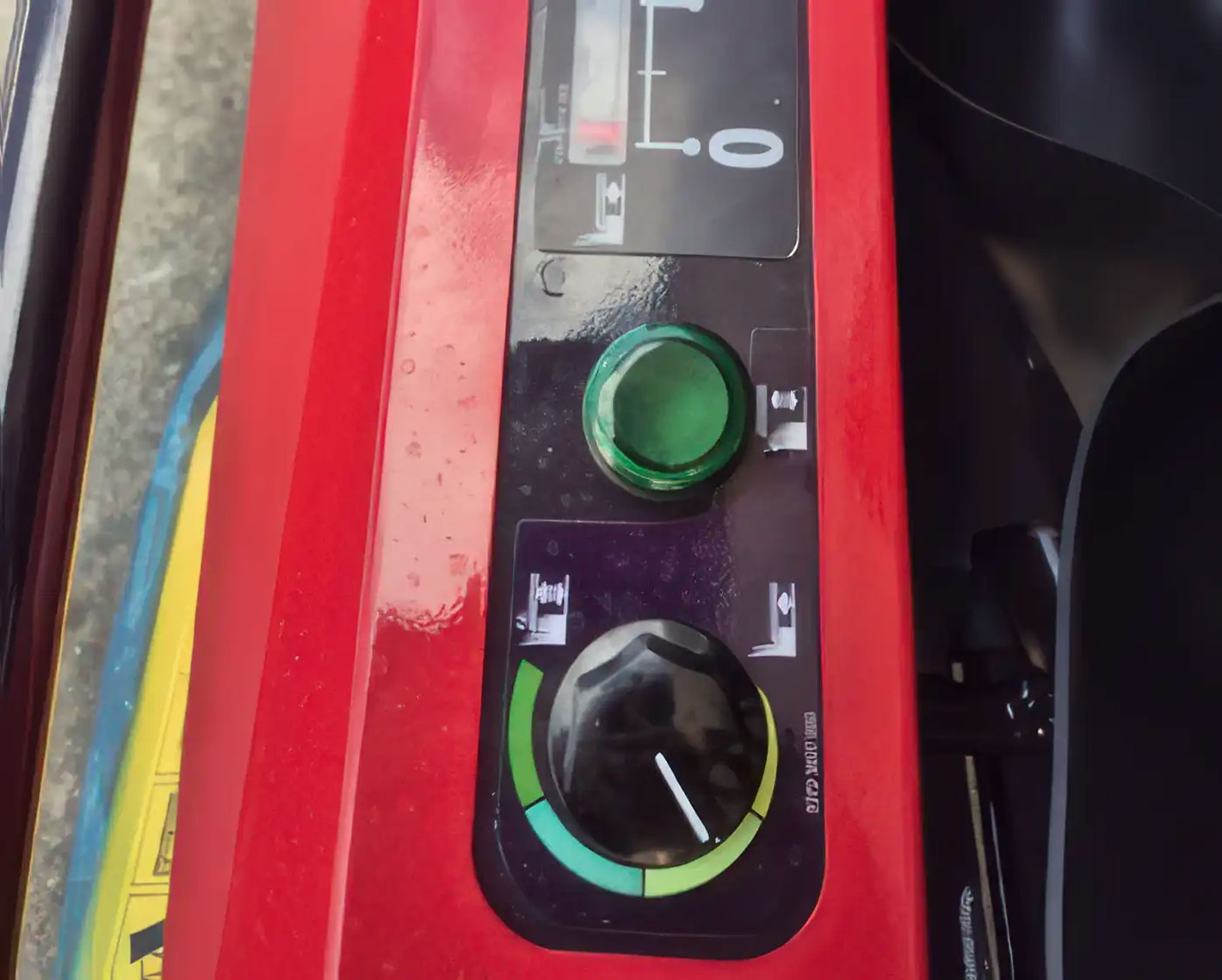

Height of cut control

Easy and convenient hight cut control - simple to operate.

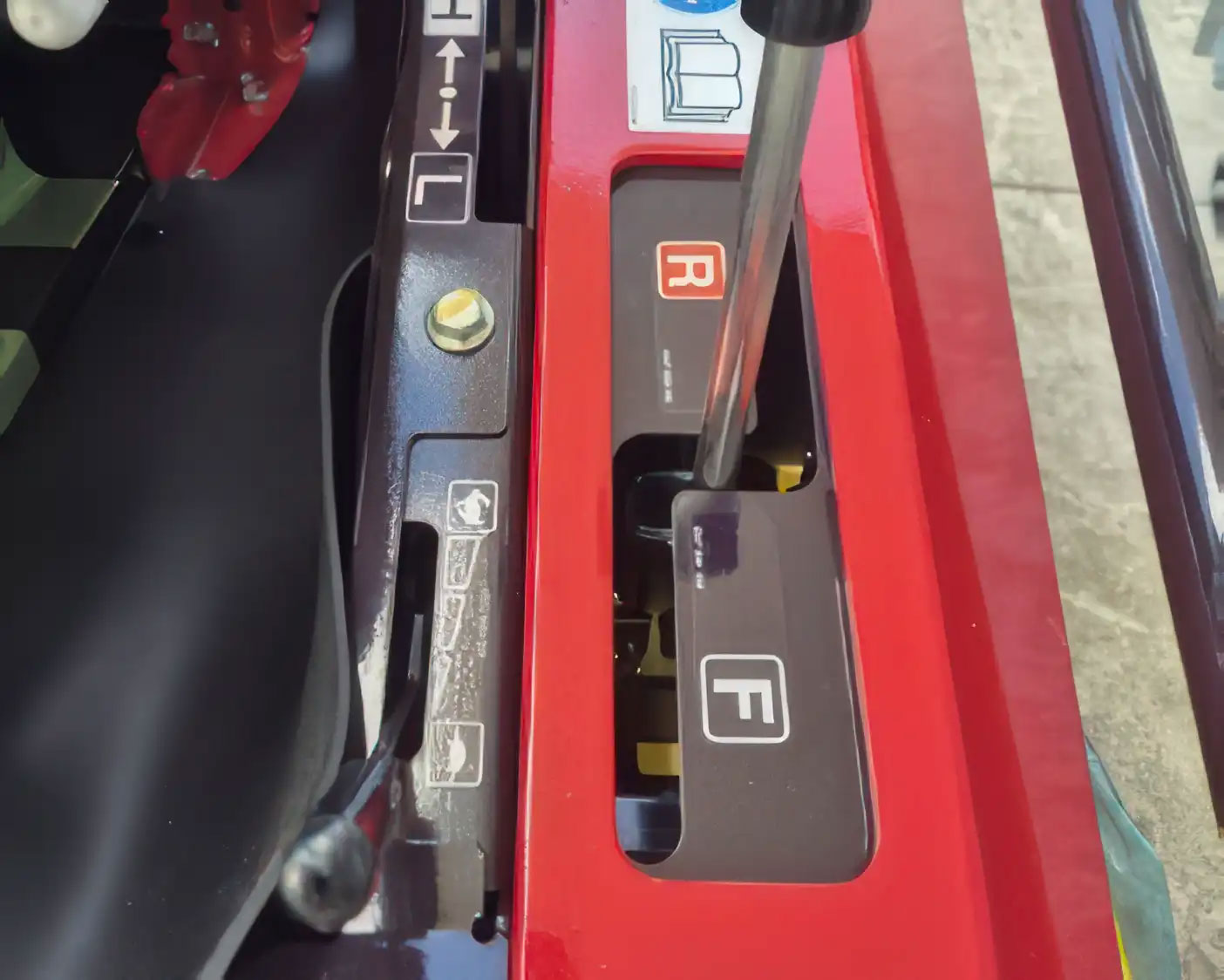

Cruise control lever

Easy ground speed direction and cruise control lever, comfortable for many hours of mower operation for commercial contractors.

Razorback Specifications

Cutting Height:
0 – 150 mm
Cutting Width:
975 mm
Drive Train:
4 Wheel Drive
Fuel Tank Capacity:
20 litres
Gradeability:
25 degrees
Max Speed:
14.2 km/h
Operating Mass:
445 Kg - fuel tank full
Rated Net Output:
16.5 Kw@3600rpm
Stability Angle:
25 degrees left & right
